Output Results¶

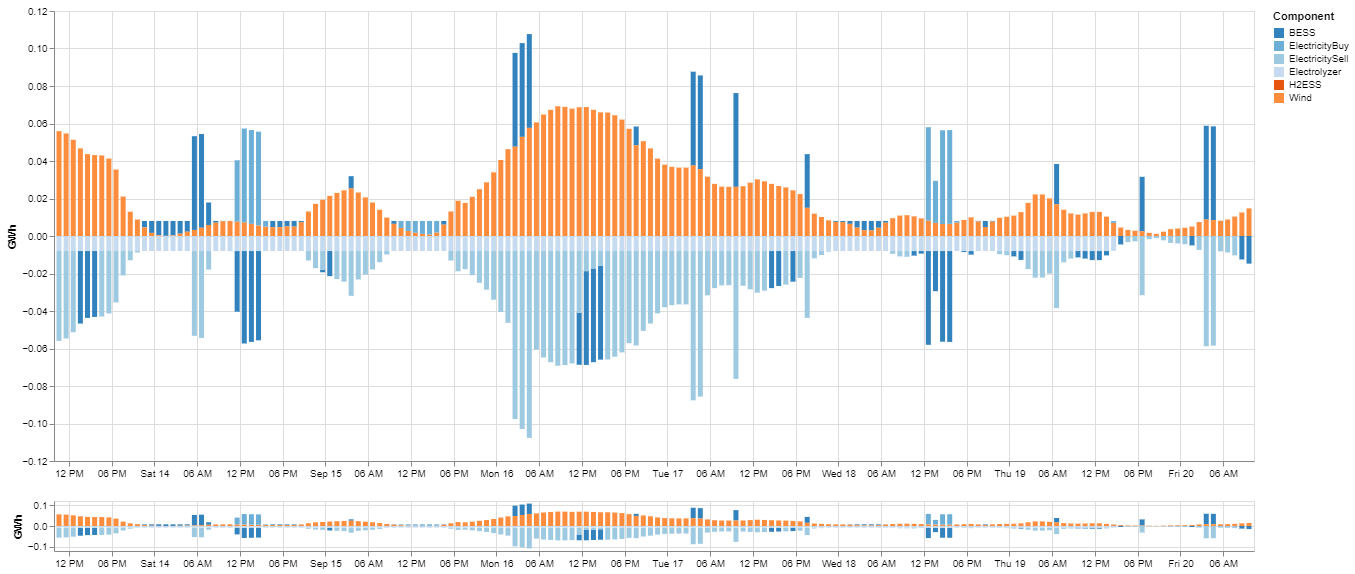

The output includes several maps of the electricity and hydrogen network and plots showing the energy share of different technologies.
Some other additional plots are also plotted by the model.
In addition, the model generates several other plots to visualise key results. The CSV files used to store the output results are of three types:
Derived/Transformed Values: Files that are derived or transformed from the values of variables.
Optimisation variable values: Files related to the values of each variable in the optimisation problem.
Dual Values of Constraints: Files containing the dual values associated with the constraints.
Unit conventions:¶
For the first type (derived/transformed values), power is expressed in MW, energy in GWh, cost in M€ and hydrogen in kgH2.
For the last two types of CSV files (values of optimisation variables and dual values of constraints), power is expressed in GW, cost in M€ and hydrogen in tH2.
CSV files for derived/transformed values¶
File oH_Result_rTotalCost_{Case Name}.csv
Identifier |
Header |
Description |
||||
|---|---|---|---|---|---|---|
Period |
Scenario |
Load level |
Component |
Date |
MEUR |
Total costs and profits |
File oH_Result_rElectricityBalance_{Case Name}.csv
Identifier |
Header |
Description |
||||
|---|---|---|---|---|---|---|
Period |
Scenario |
Load level |
Component |
Date |
GWh |
Generation, consumption, flows, losses and demand [GWh] |
File oH_Result_rHydrogenBalance_{Case Name}.csv
Identifier |
Header |
Description |
||||
|---|---|---|---|---|---|---|
Period |
Scenario |
Load level |
Component |
Date |
tH2 |
Generation, consumption, flows, losses and demand [tH2] |
File oH_Result_rElectricityNetworkFlows_{Case Name}.csv
Identifier |
Header |
Description |
||||||
|---|---|---|---|---|---|---|---|---|
Period |
Scenario |
Load level |
Initial Node |
Final Node |
Circuit |
Date |
GWh |
Electricity flows in the network [GWh] |
File oH_Result_rHydrogenNetworkFlows_{Case Name}.csv
Identifier |
Header |
Description |
||||||
|---|---|---|---|---|---|---|---|---|
Period |
Scenario |
Load level |
Initial Node |
Final Node |
Circuit |
Date |
tH2 |
Hydrogen flows in the network [tH2] |
File oH_Result_rElectricityTechnologyGeneration_{Case Name}.csv
Identifier |
Header |
Description |
||||
|---|---|---|---|---|---|---|
Period |
Scenario |
Load level |
Component |
Date |
GWh |
Electricity generation by technology [GWh] |
File oH_Result_rReservesOffers_{Case Name}.csv
Identifier |
Header |
Description |
|||||
|---|---|---|---|---|---|---|---|
Period |
Scenario |
Load level |
Unit |
Component |
Date |
GWh |
Reserves offers by technology [GWh] |
CSV files for optimisation variables¶
Each file in this category is named
oH_Result_v{Variable Name}_{Case Name}.csv
The structure of the CSV file is as follows
Variable Name |
Index |
Value |
LowerBound |
UpperBound |
CSV files for dual values of constraints¶
Each file in this category is named
oH_Result_e{Constraint Name}_{Case Name}.csv
The structure of the CSV file is as follows
Constraint Name |
Index |
Value |
LowerBound |
UpperBound |
